BSH - glued laminated timber
Glulam (glued laminated timber) is an industrially processed product and consists of at least three spruce lamellas glued together in parallel fibres.
Glulam is characterised, among other things, by enormous dimensional stability, low cracking, increased load-bearing capacity compared to conventional construction timber and high fire safety. Due to these positive properties, glulam has been part of ante's product portfolio for over 20 years. ante glulam is available in the dimensions 6 x 12 cm to 24 x 60 cm and in individual lengths of up to 18 metres.

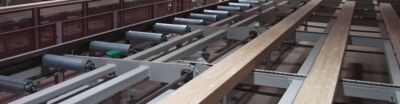

The lamellas are kiln-dried to a wood moisture content of 10-12% and machine-sorted for strength before gluing. Irregularities in the natural wood product, such as rough knots or colour defects in the wood, are cut out and the resulting individual lamellas of different lengths are glued together again using a finger joint. After the glue has been applied to the flat side of each individual lamella, they are stacked on top of each other and then pressed together using a high-frequency press. After the glue has hardened, the individual components are planed and bevelled twice.
Other dimensions on request.
Glulam (glued laminated timber) Standard
| wood species: | spruce |
| quality: | visible quality, industrial quality |
| strength classes: | GL24, GL28 |
| surface and finger joint gluing: | modified melamine resin, for categories 1-2, UV-proof and weatherproof |
| width: | 60 - 240mm (45mm is split; only in GL24 available) |
| height: | up to 600mm (in 40mm steps) |
| length: | 7,5 - 18m |
| cut to length | 6 - 18m |
pack size overview
| Dimension | width 60 mm |
width 80 mm |
width 100 mm |
width 120 mm |
width 140 mm |
width 160 mm |
width 180 mm |
width 200 mm |
width 220 mm |
width 240 mm |
| height 100 mm |
/ | 55 | 44 | / | / | / | / | / | / | / |
| height 120 mm |
63 | 45 | 36 | 27 | / | / | / | / | / | / |
| height 140 mm |
56 | 40 | 32 | / | 21 | / | / | / | / | / |
| height 160 mm |
49 | 35 | 28 | 21 | 21 | 18 | / | / | / | / |
| height 200 mm |
35 | 25 | 20 | 15 | 15 | 12 | 10 | 10 | 10 | / |
| height 220 mm |
/ | / | / | / | / | / | / | / | 10 | / |
| height 240 mm |
28 | 20 | 16 | 12 | 12 | 12 | 8 | 8 | 8 | 8 |
| height 280 mm |
28 | 20 | 16 | 12 | 12 | 12 | 8 | 8 | 8 | 8 |
| height 320 mm |
21 | 15 | 12 | 9 | 9 | 9 | 6 | 6 | 6 | 6 |
| height 360 mm |
21 | 15 | 12 | 9 | 9 | 9 | 6 | 6 | 6 | 6 |
| height 400 mm |
14 | 10 | 8 | 6 | 6 | 6 | 4 | 4 | 4 | 4 |
| height 440 mm |
14 | 10 | 8 | 6 | 6 | 6 | 4 | 4 | 4 | 4 |
| height 480 mm |
14 | 10 | 8 | 6 | 6 | 6 | 4 | 4 | 4 | 4 |
| height 520 mm |
14 | 10 | 8 | 6 | 6 | 6 | 4 | 4 | 4 | 4 |
| height 560 mm |
14 | 10 | 8 | 6 | 6 | 6 | 4 | 4 | 4 | 4 |
| height 600 mm |
7 | 5 | 4 | 3 | 3 | 6 | 2 | 2 | 2 | 2 |
Glulam (glued laminated timber) UK Standard
| wood species: | spruce |
| quality: | visible quality, industrial quality |
| strength classes: | GL24, GL28 |
| surface and finger joint gluing: | modified melamine resin, for categories 1-2, UV-proof and weatherproof |
| width: | 45 - 140mm (45mm is split; only in GL24 available) |
| height: | up to 585mm (in 45mm steps) |
| length: | 7,5 - 18m |
| cut to length | 6 - 18m |
pack size overview
| Dimension | width 45 mm |
width 90 mm |
width 115 mm |
width 140 mm |
| height 225 mm |
45 | 20 | 15 | 15 |
| height 270 mm |
36 | 16 | 12 | 12 |
| height 315 mm |
27 | 12 | 9 | 9 |
| height 360 mm |
27 | 12 | 9 | 9 |
| height 405 mm |
18 | 8 | 6 | 6 |
| height 450 mm |
18 | 8 | 6 | 6 |
| height 495 mm |
18 | 8 | 6 | 6 |
| height 540 mm |
18 | 8 | 6 | 6 |
| height 585 mm |
18 | 8 | 6 | 6 |
